Product Details

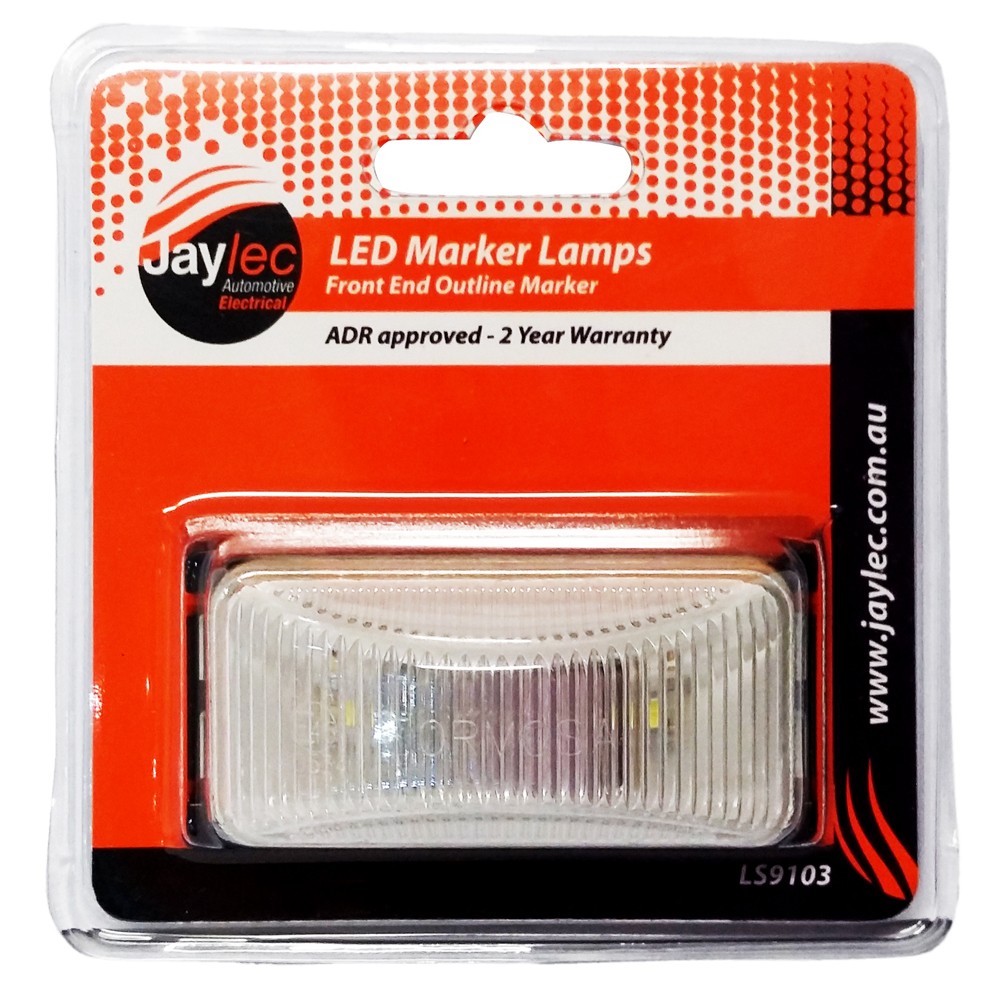

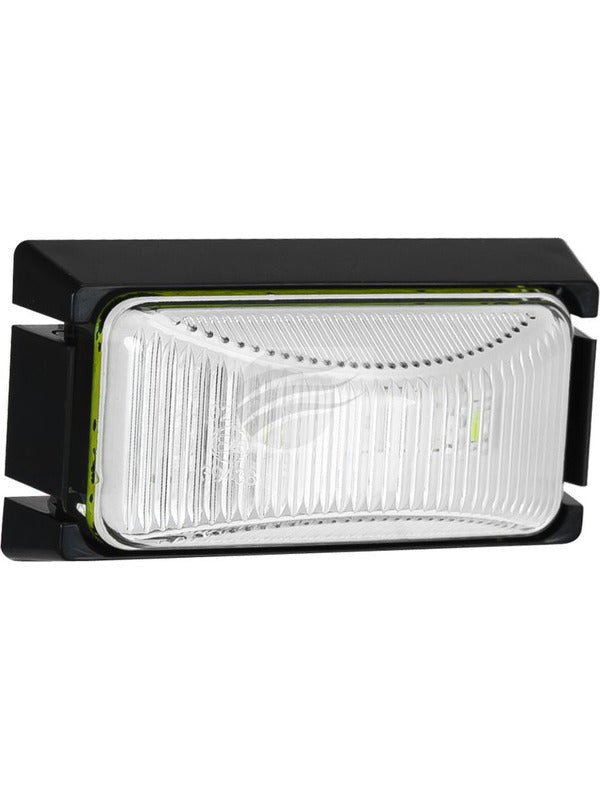

- LED Front End Position Outline Marker Lamp 12/24 Volt
- White Illumination
- 3 x High Intensity White LED's
- Clear Optical Hardened Acrylic Lens
- Black Plastic Housing with mounting screws included
- Surface Mount- low mounting depth for easy installation
- Tinned Copper Pre-wired 200mm Lead
- Fully encapsulated circuitry
- Sealed against Dust and Moisture
- 0.06amps at 12 Volt and 0.05amps at 24 Volt Current Draw
- ADR 49/00 Front Position Lamp specifications approved
- Refer to ADR 13/00 for mounting instructions
- 5 Year Warranty
--
Colour | White |
Type | LED |
Shape | Rectangular |
Voltage | 12/24V |
Mount | Surface |

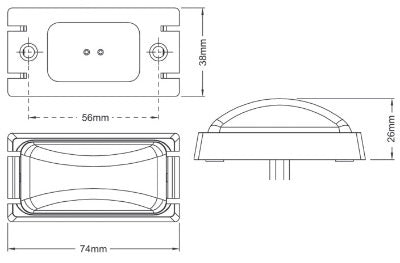

Width (mm) | 74 |
Height (mm) | 38 |
Depth (mm) | 26 |
