3P Door - Barrel and Keys - Camec

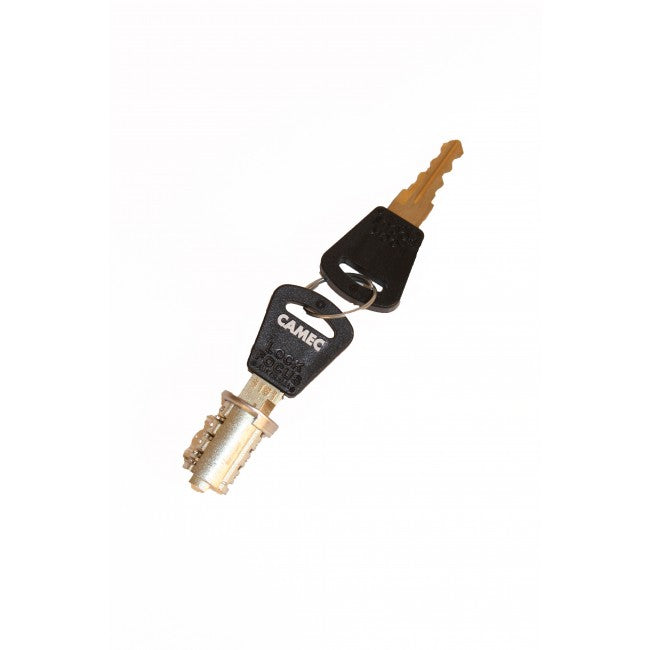

Camec 3 Point Lock Barrel & Key,

Removing lock barrel

After removing lock assembly from the door, hold the handle open and turn and pull the rear metal lock activator (cylinder).
To remove the key barrel, working from the rear, depress the small metal wafer into the lock while the lock is rotated so the square protrusions on the lock line up with the gaps in the housing. The lock should now slide out the front.

To Add the lock barrel

Place the key in the lock and turn so the square protrusions on the lock line up with the gaps in the housing. Place the barrel at an angle so the wafer enters the housing first and depresses itself while the remainder of the lock to pushed in. The wafer should pop out to secure the lock in place.

Barrel and keys to suit Camec 3P door locks.
